Description
SPECIFICATION:-
| UNLADEN WEIGHT OF TRAILER | Approx. 9500 kg. |
| CHASSIS | 535 mm x125 mm x10 mm IS2062 or Equivalent Grade |
| CHASSIS CROSS | 150mm x1016mm 5mm, 125mm x 1016 mm x5mm, 1016mm x 160mm x8 mm |
| SHEET | 4 mm thick sideboard & 4 mm tail door – IS2062 or Equivalent Grade |
| FLOOR | 5 mm sheet IS2062 or Equivalent Grade |
| KINGPIN | 2” king pin equivalent to IS : 6763 Part I provided |
| LANDING LEG | Two speed landing leg shall be provided at the front end. Make- York / TATA DLT / JAM |
| SUSPENSION | Heavy Duty Tridem Axle multi Leaf spring suspension Make – ( YORK / TATA DLT / JAM ) shall be provided |
| AXLE | 3 Nos. Axle (1950 Track Length) Q14 Make- ( YORK / TATA DLT / JAM ) shall be provided |
| TIPPING KIT | 5 Stage FC 191 HYWA made |
| WHEEL RIM | 7.50 x 20 – 12 NOS. MAKE -TATA /Ashok Leyland Shall be provided |
| TYRE | 10.00 x 20 – 12 NOS. Nylon |
| BRAKES | Twin line air brake system coupled to tractor brake system. T24 Brake chamber shall be provided on all Axles. Relay Valve Make WABCO shall be provided |
| PAINT | Two Coats of PU high Built Unicoat Paint with colour of customer choice shall be provided. |
| ELECTRICAL | Parking Lamps, Brake Lamps, and Direction indicator Lamps Fitted in the Trailer MAKE- HELLA & HI-LUX shall be provided |
| FITMENTS | Fitments such as SUPD, RUPD, Toll Box ( Side ) etc. shall be provided |
| REFLECTORS | Reflecting Tape, Rear Marking Plate, T- Sign MAKE- 3 M shall be provided |
| WELDING | 0.8 mm Mig Wired and 1.2 mm Flux Coated Copper Wires is being used |
Option Available:-
- Brake System – ABS or EBS
- Suspension – Air Suspension
- Tyre – Radial

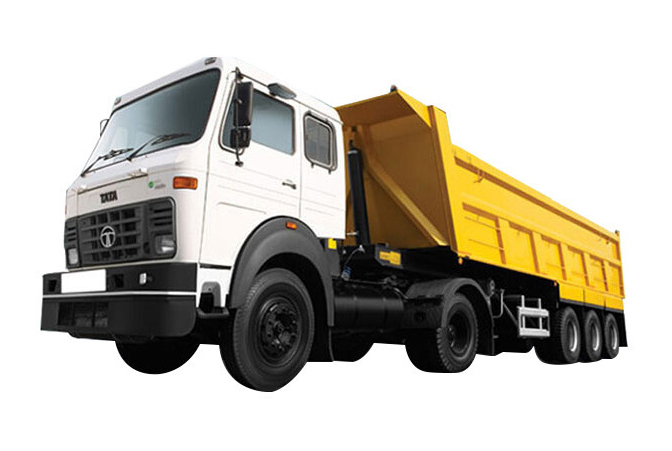

Power Through Massive Loads with the Tridem Axle 34 CUM Tip Trailer – Built to Move Mountains, Literally
Introducing the Tridem Axle 34 CUM Tip Trailer – a high-capacity tipping solution engineered for the heaviest-duty applications in mining, construction, and infrastructure projects. With a massive 34 cubic meter capacity and a reinforced hydraulic tipping system, this trailer is built to carry and dump large volumes of sand, gravel, stone, and overburden with ease. Its triple axle design ensures superior load balance, better traction, and reliable off-road performance, even in the most demanding conditions.
🔧 Key Features:
•Capacity: 34 CUM – built for ultra-high volume earthmoving and material hauling
•Axle Configuration: Tridem Axle – provides stability, control, and long-haul durability
•Body Construction: Heavy-duty steel with hydraulic tipper system
•Chassis Strength: Industrial-grade frame for rugged field performance
•🇮🇳 Made in India – proven reliability on construction sites, mining zones, and rural terrains
