Description
SPECIFICATION:-
| UNLADEN WEIGHT OF TRAILER | Approx. 7500 kg. |
| CHASSIS | 450 mm x125 mm ( 12 mm Top , 10 mm Middle & 20 mm Lower )IS2062 or Equivalent Grade/400 BEAM JINDAL or SEL |
| CHASSIS CROSS | 11 – 13Nos ( 4 mm bending , 10 mm & channel ) IS2062 or Equivalent Grade |
| SIDEWALL SHEET | Front sheet of 4′ height, side sheet of height 4′ x2mm drop down rear door shall be provided of height 750 mm- IS2062 or Equivalent Grade |
| FLOOR | 3.5 mm CHQ sheet IS2062 or Equivalent Grade |
| KINGPIN | 2” king pin equivalent to IS : 6763 Part I provided, Make:- RSB |
| LANDING LEG | Two speed landing leg shall be provided at the front end. Make- York / RSB / JAM |
| SUSPENSION | Heavy Duty Tandem Axle multi Leaf spring suspension Make – ( YORK / RSB / JAM ) & mono air suspension make ( YORK / RSB / JAM ) shall be provided |
| AXLE | 3 Nos. Axle (1850 Track Length) Q14 Make- ( YORK / RSB / JAM ) shall be provided |
| WHEEL RIM | 7.50 x 20 – 12 NOS. MAKE -TATA /Ashok Leyland Shall be provided |
| TYRE | 10.00 x 20 – 12 NOS. Nylon |
| BRAKES | Tridem ABS Kit Make WABCO shall be provided |
| PAINT | Two Coats of PU high Built Unicoat Paint with colour of customer choice shall be provided. |
| ELECTRICAL | Parking Lamps, Brake Lamps, and Direction indicator Lamps Fitted in the Trailer MAKE- HELLA & HI-LUX shall be provided |
| FITMENTS | Fitments such as SUPD, RUPD, Toll Box ( Side ) etc. shall be provided |
| REFLECTORS | Reflecting Tape, Rear Marking Plate, T- Sign MAKE- 3 M shall be provided |
| WELDING | 0.8 mm Mig Wired and 1.2 mm Flux Coated Copper Wires is being used |
Option Available:-
- Tyre – Radial

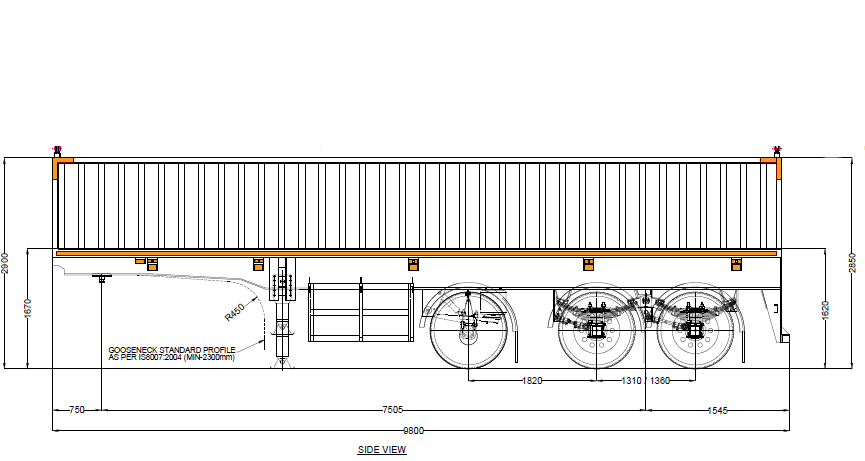

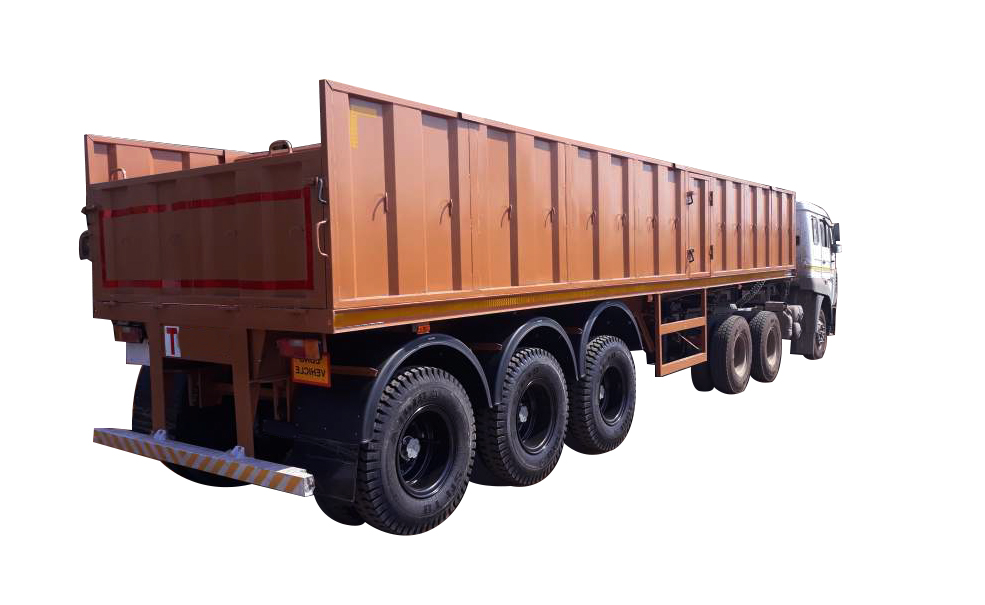

Maximize Hauling Power with the Tridem Axle 32ft x 4ft Side Body Trailer – Strength, Stability & 52-Ton Capacity.
Designed for extreme loads and long-distance efficiency, this heavy-duty trailer with a Gross Vehicle Weight of 52 tons is the ultimate solution for transporting industrial goods, construction materials, and bulk cargo. The 32ft x 4ft side body structure ensures load security, while the tridem axle offers excellent weight distribution and road performance. Built tough, built for business.
Reinforced steel body with full side walls for added safety
Tridem axle – superior balance under heavy loads
Dimensions: 32ft x 4ft – optimal size for bulk transport
GVW: 52 Tons – for extra-heavy cargo
🇮🇳 Made in India – engineered for Indian roads
