Description

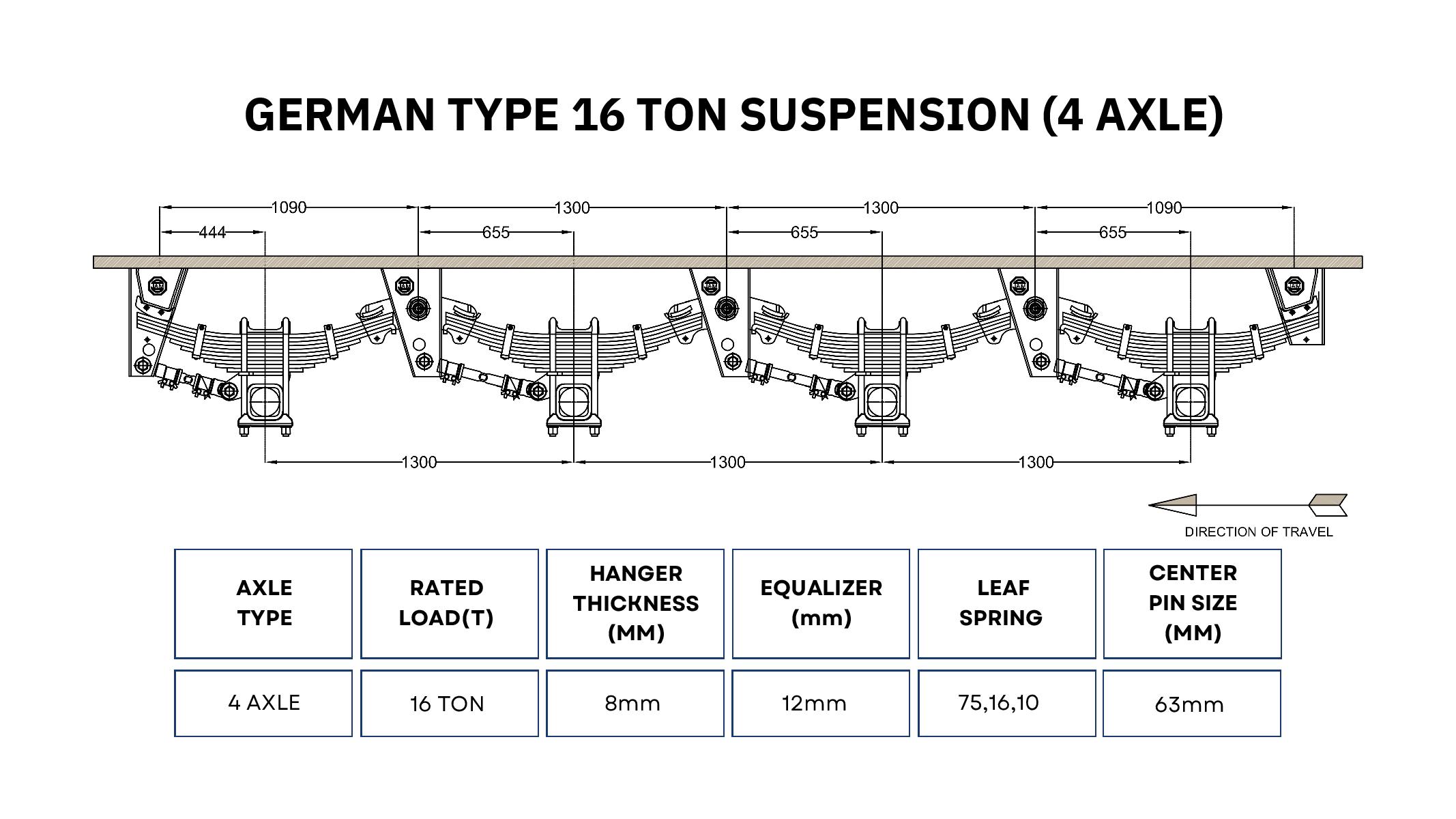

Designing a suspension system for a 16-ton, four-axle trailer involves specifying components that ensure safety, durability, and optimal performance. Based on the specifications provided by Jain Automart LLP, the following table summarizes the key components and their specifications:
| Component | Specification | Notes |
| Leaf Spring | 10-leaf, 75 mm x 16 mm | Ensure each spring is designed to handle the specified load capacity. |
| Hangers | Thickness: 8 mm | Front and rear hangers should be designed to accommodate the specified leaf springs. |
| Equalizers | Thickness: 12 mm | Distribute load evenly between axles; typically 12 mm in thickness. |
| Torque Arm Pin Nuts | Thread: M30, Length: 195 mm | Secure torque arms; install on the kerb side (left side) of the trailer. |
| Dimensional Tolerance | ±3 mm | Maintain all dimensions within a tolerance of +/- 3 mm for precise fitting. |
Design Considerations:
- Load Distribution: Ensure that the suspension components are rated for the intended load capacities to prevent overloading and excessive wear.
- Suspension Geometry: Calculate hanger spacing based on the leaf spring’s eye-to-eye length, ensuring proper alignment and functionality.
- Component Compatibility: Verify that all components are compatible with each other and suitable for the intended application.
- Regulatory Compliance: Adhere to local and international safety standards for trailer suspension systems.
Given the complexity and safety implications, it’s recommended to consult with suspension system experts or manufacturers to trailer the design to your specific requirements.
